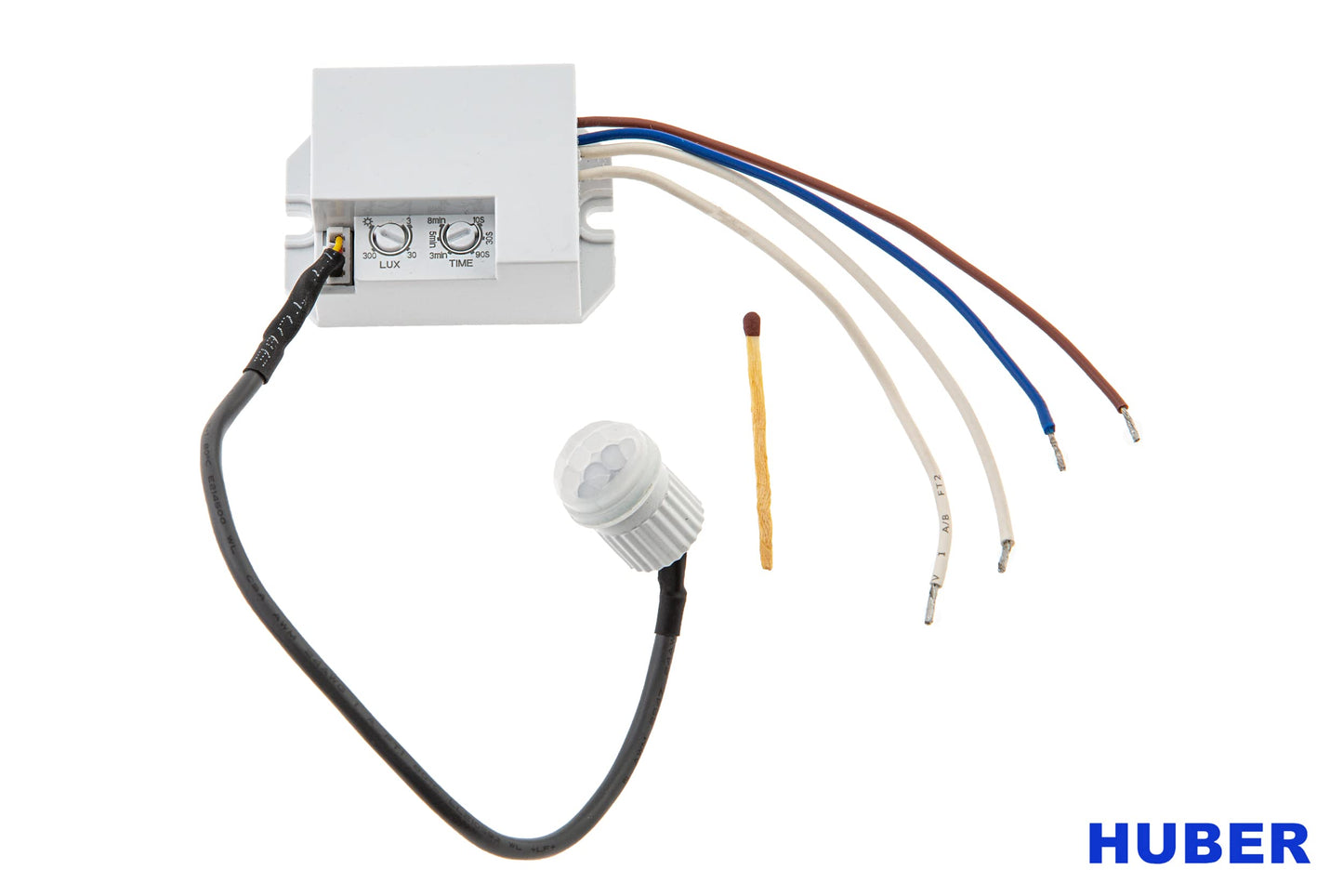

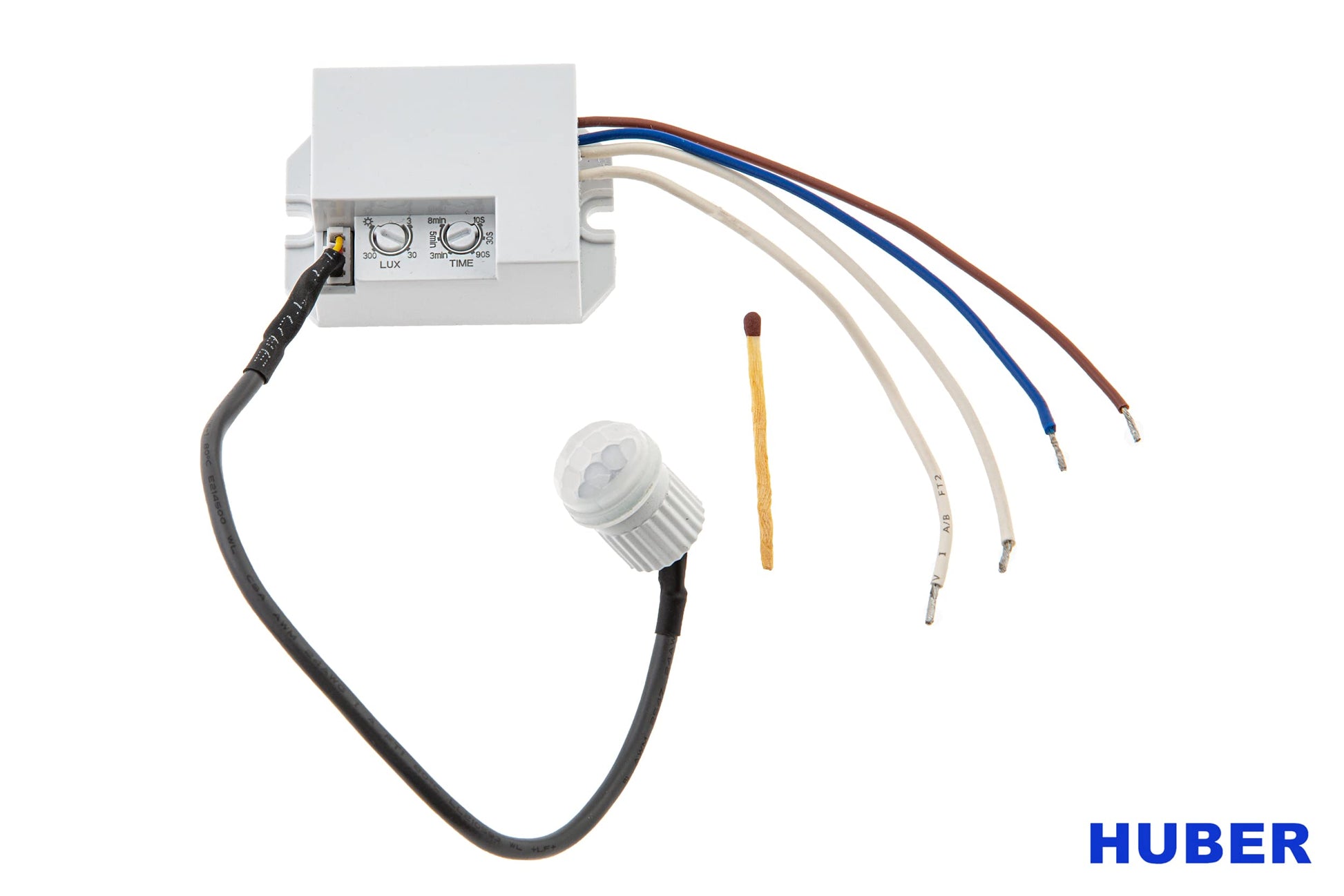

HUBER Motion 19LV Mini PIR Motion Sensor 120° / 360° for Indoor/Outdoor Mounting I Sensor IP65 I 12-24V Built-in Motion Sensor Small with Potentiometer

Brand: Huber

Color: E. Built-in Motion Detector Potentiometer 12 - 24 V

Features:

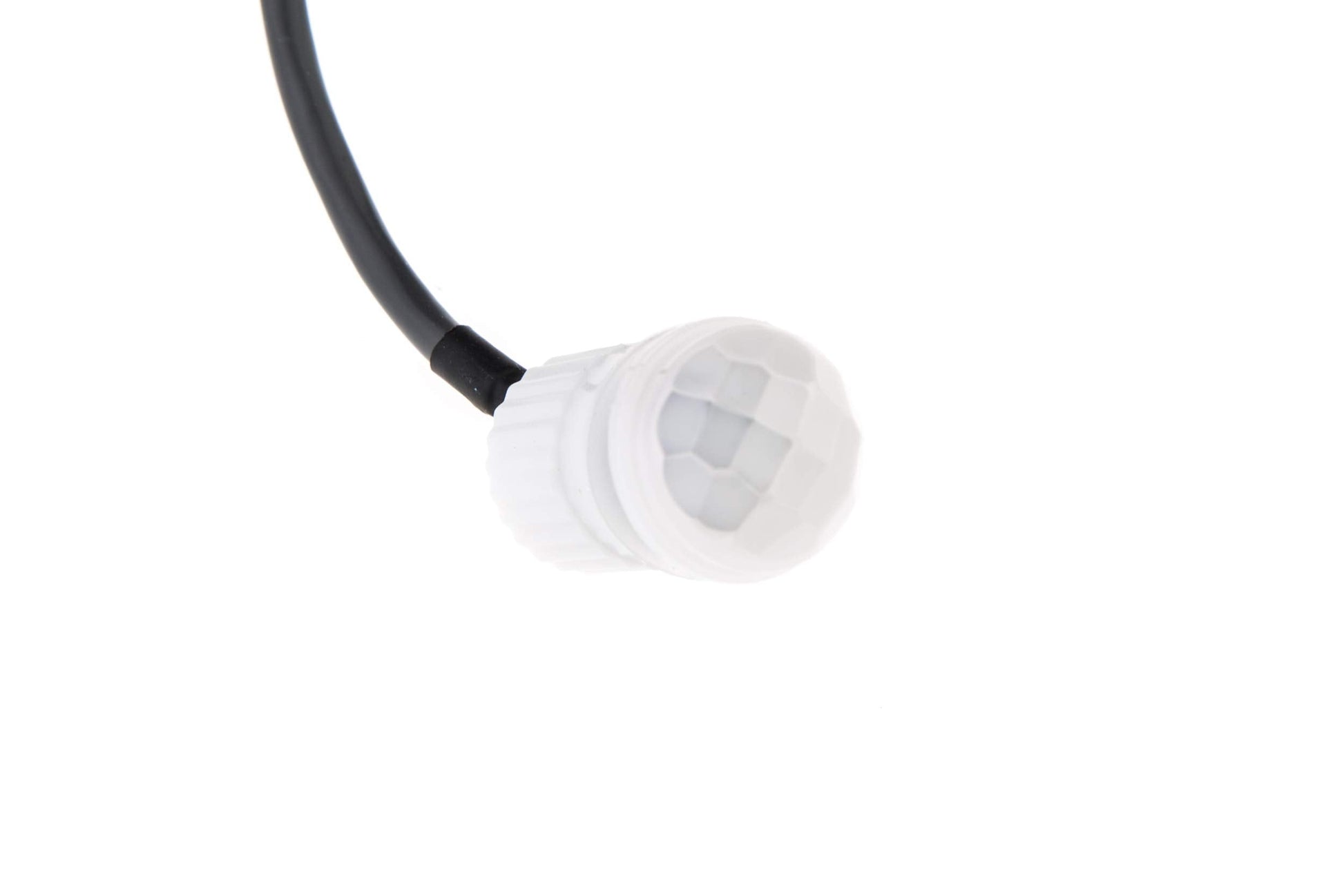

• Motion sensor - The sensor reacts reliably to movements at an angle of 120/360° thanks to infrared technology. The detection range of the motion sensor is up to 6 m. The switch-on time can be set between 10s and 8min.
• Motion sensor - The sensor reacts reliably to movements at an angle of 120/360° thanks to infrared technology. The detection range of the motion sensor is up to 6 m. The switch-on time can be set between 5s and 8min.

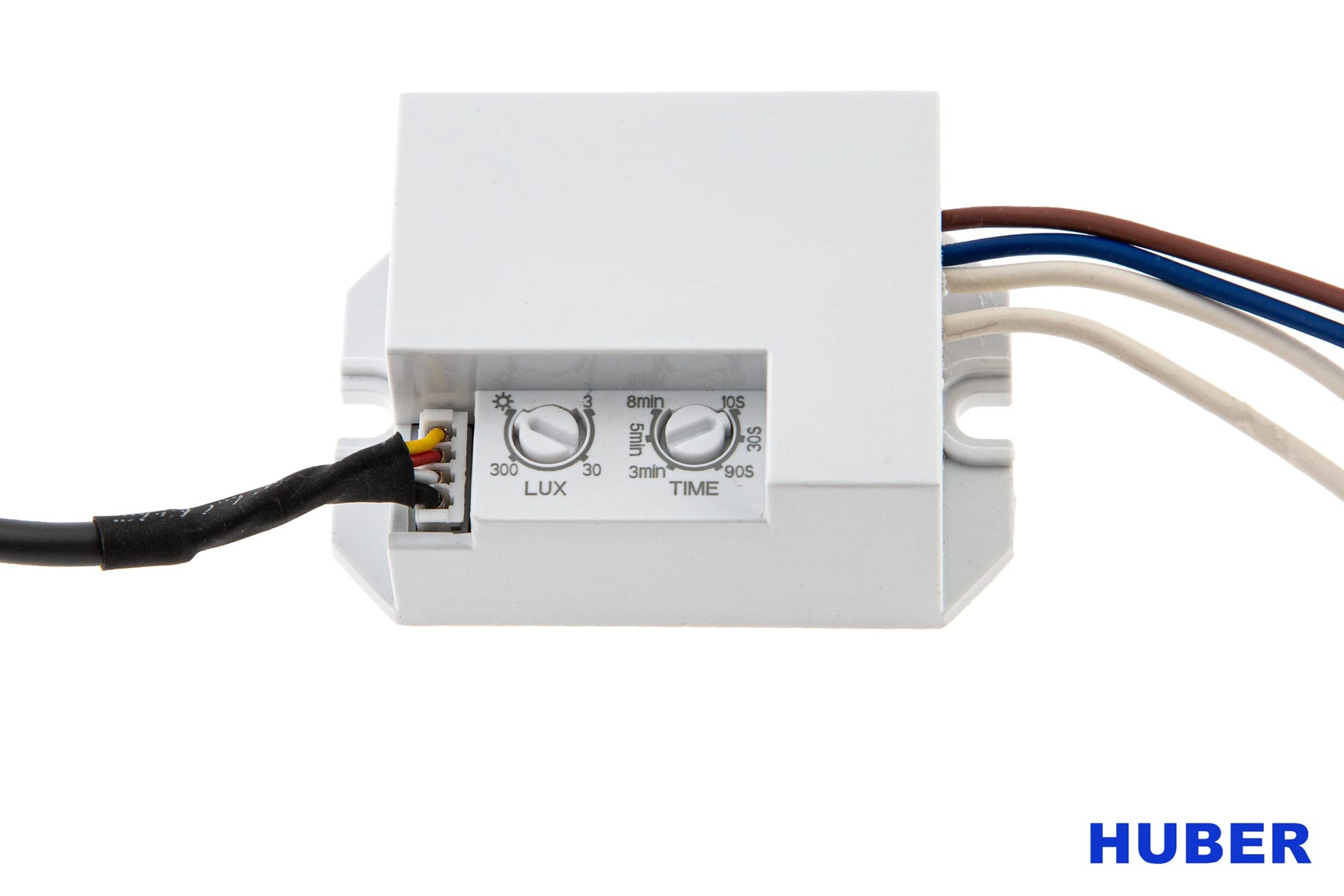

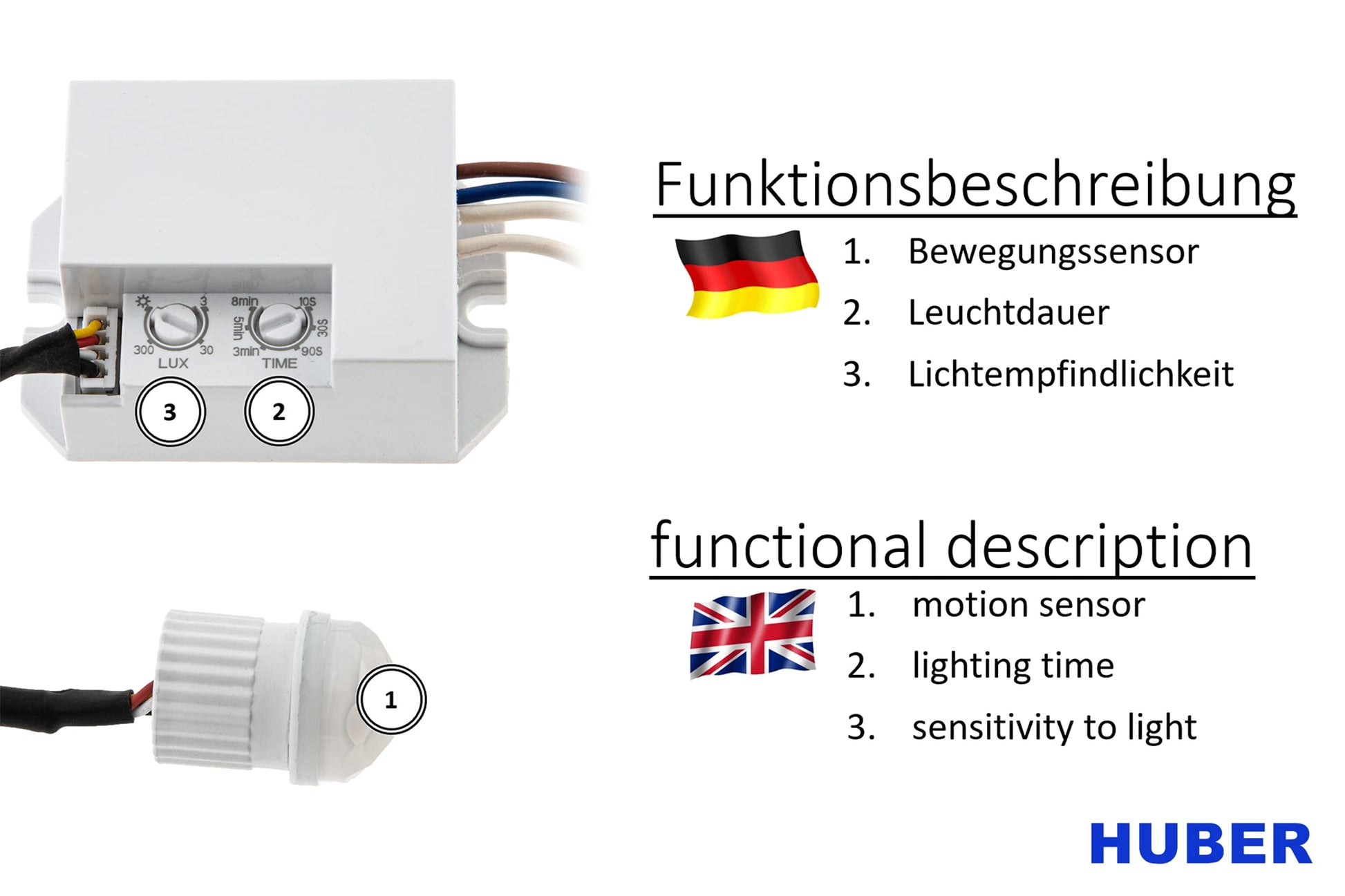

• Damping switch – the twilight sensitivity of the infrared motion sensor can be adjusted between 10 and 2000 lux with potentiometer and therefore offers all kinds of uses. Decide for yourself!
• 5 A switching power – the maximum switching capacity of the infrared motion sensor is 5 A. Our motion detectors are also suitable for LED energy and fluorescent lamps.
• Sensor IP65 jet water protected – thanks to the protection class IP65, the sensor can be used indoors and outdoors (switch box IP20 only dry rooms). - Parallel switching of several motion detectors possible. Not for cross and changeover switching

Binding: DIY & Tools

model number: 37168

Part Number: 37168

Details: Infrared motion sensor 180°/360° detection range
Protection class sensor IP65, box IP20 depending on installation location, suitable for indoor and outdoor use.
Protection class III, protective low voltage.
Switching capacity: max. 5A
Switch-on time from 5 s to 8 minutes. Adjustable
Response sensitivity adjustable at dusk from 3 to 2000 lux.
Detection range up to 6 m.
With German operating instructions

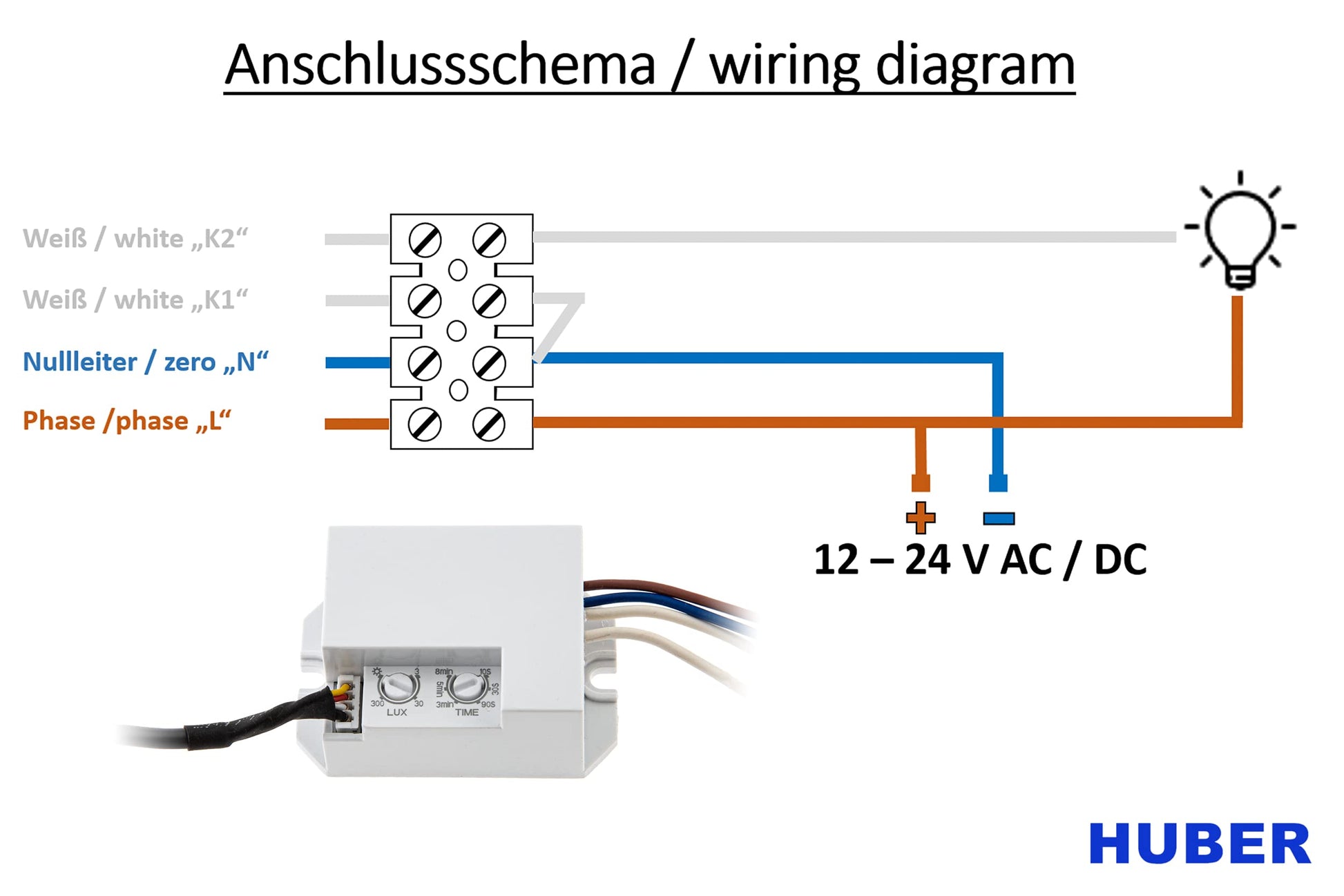

3-wire technology.
Mounting height: 1 – 5 m, optimal 1 – 1.8 m.
Precise and temperature-independent detection of people and movement in the dark or twilight. Designed for quick and easy installation in a light or box.
Not suitable for alternating or crosslinking

With the HUBER PIR motion detector, you can rely on the latest technology for indoor monitoring. Protect the area in your home, provide automatic lighting in the entrance area, basement, hallway or garage, the possibilities are almost unlimited.
HUBER quality from conviction

EAN: 4058888371688

Package Dimensions: 3.6 x 1.9 x 1.9 inches
